Experience Studio
A working smart home you can walk through
Visits by invitation in DHA Phase 5, Lahore. See lighting, curtains, climate, water and security running on one on-site controller.
The house, live
Control the room from the wall
This is the control screen in our studio's living room. Tap a light, the room answers. Choose a scene, the curtains, lights and TV move together.
Demonstration on the studio's 3D room control. Same screen, same logic as the live system.
Every downlight, cove strip and fan is drawn where it really is. Tap it on the plan; one tap turns the whole room off.
Measured in the studio
Real readings from the curtain logic
Figures from the studio system, 20 Sep – 20 Oct 2026.
~1.9 kWh / day
AC electricity avoided by automatic curtains (living + dining), daily average
7.7 kWh
Best single day, a hot afternoon in September
112 kWh
Avoided since the curtain logic went live
1.8 kW
Solar heat kept off the glass on a sunny afternoon
29,600+ kWh
generated by the studio's solar, monitored on the same system
Calculated by the studio system from sun position, glass area and AC efficiency. Estimates, not utility-bill readings. Results vary by home, orientation and use.

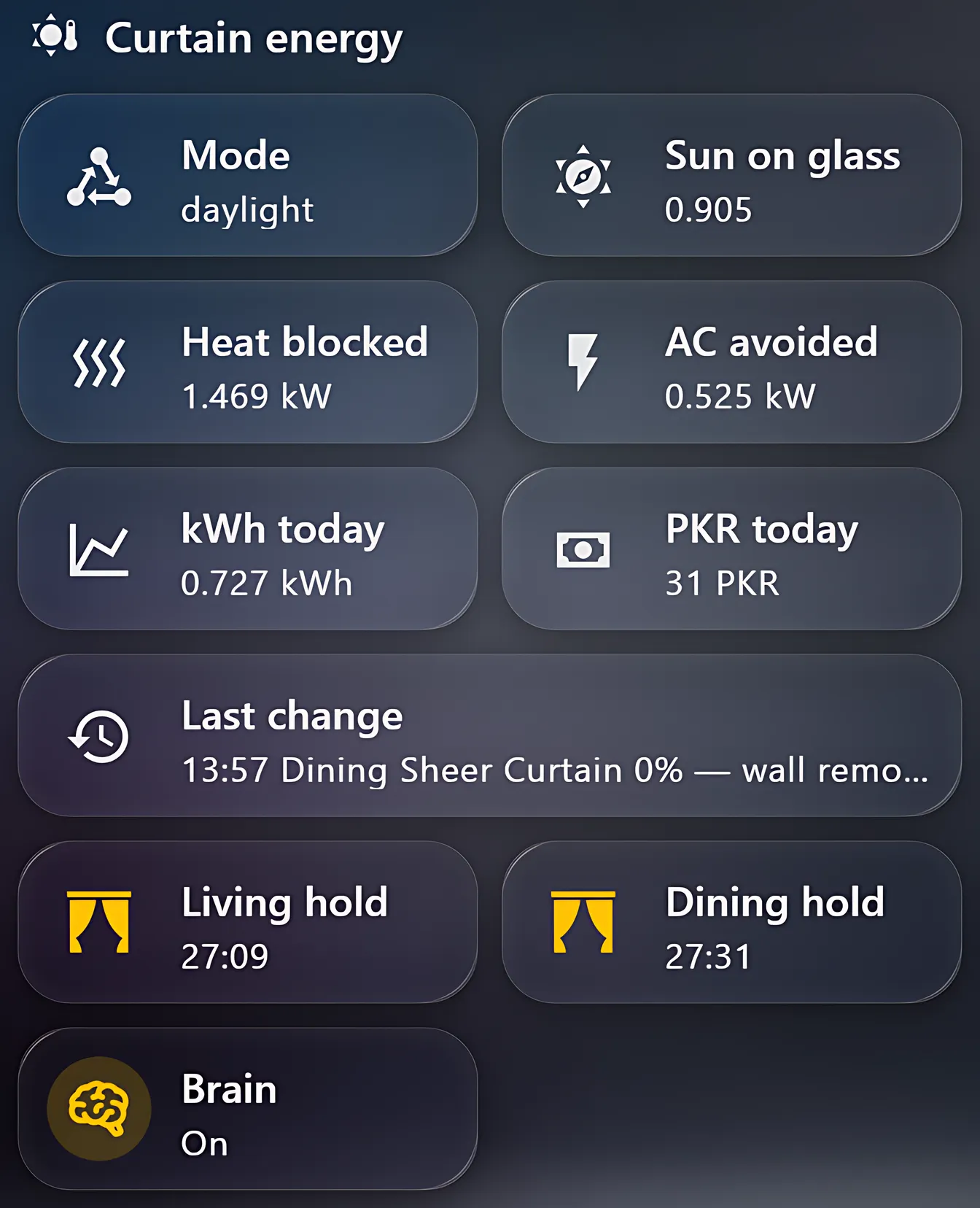

Sun and heat
How the curtains decide
- 1Sunrise: curtains open for daylight.
- 2Sun on glass: the system works out where the sun is and how much heat is hitting each window. It closes the sheer first, then the blackout, just enough to block heat while keeping light.
- 3You're in charge: move a curtain by hand or from the wall remote, and the automation respects it for two hours.
- 4Movie and gaming hold: curtains stay shut while the TV or console is on.
- 5Dusk: curtains close for privacy, and lights come on to match.
- 6Every day it keeps score: heat blocked and AC energy avoided are logged and totalled.
On the wall
Live dashboards
Real screens from the Experience Studio, Lahore. Some room names blurred for privacy.
Climate
Cooling to 22°, fan running. Live state, one tap to change.

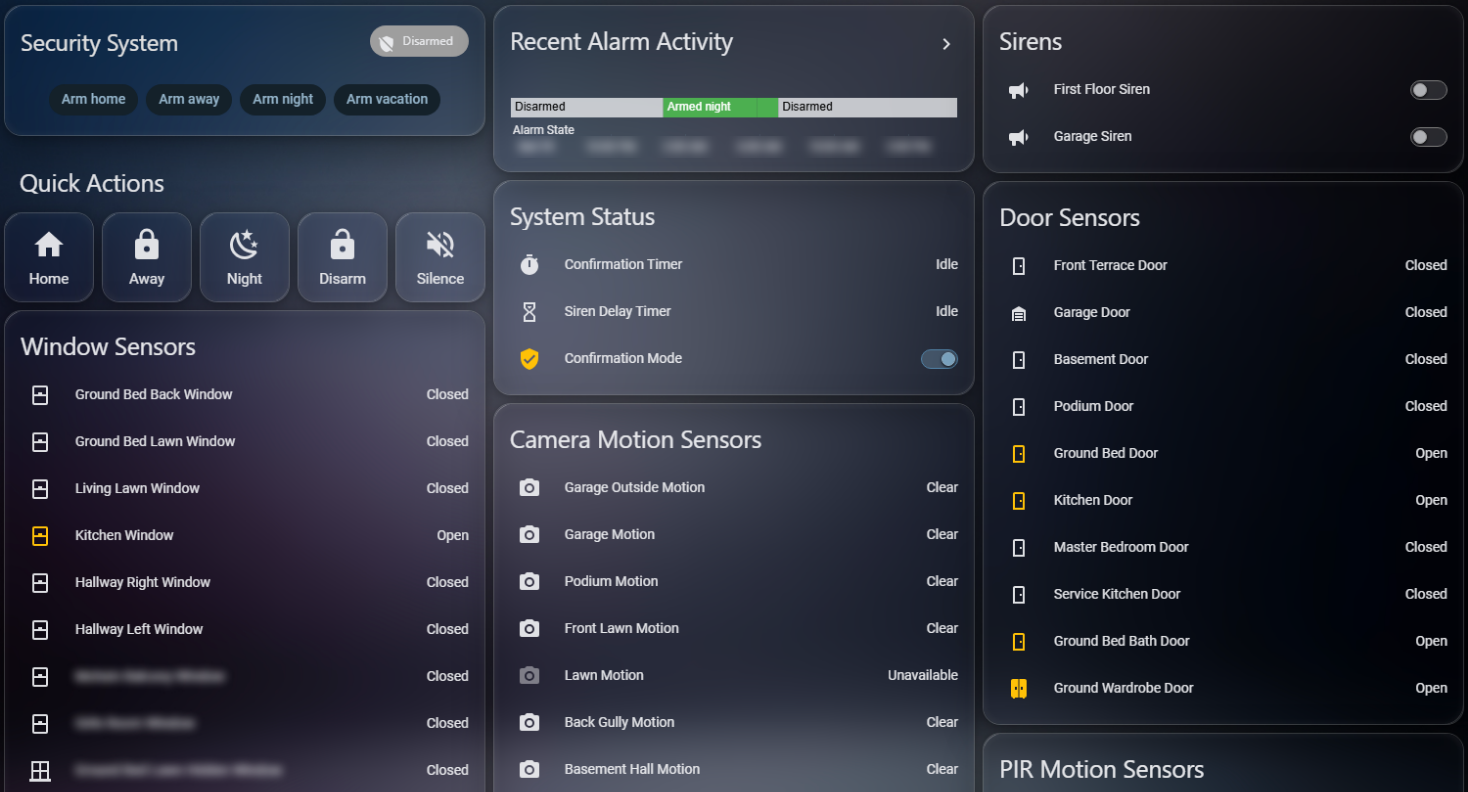

Security
Every door, window and camera zone at a glance, with arming in one tap. Staged response: alert, lights, then sirens.

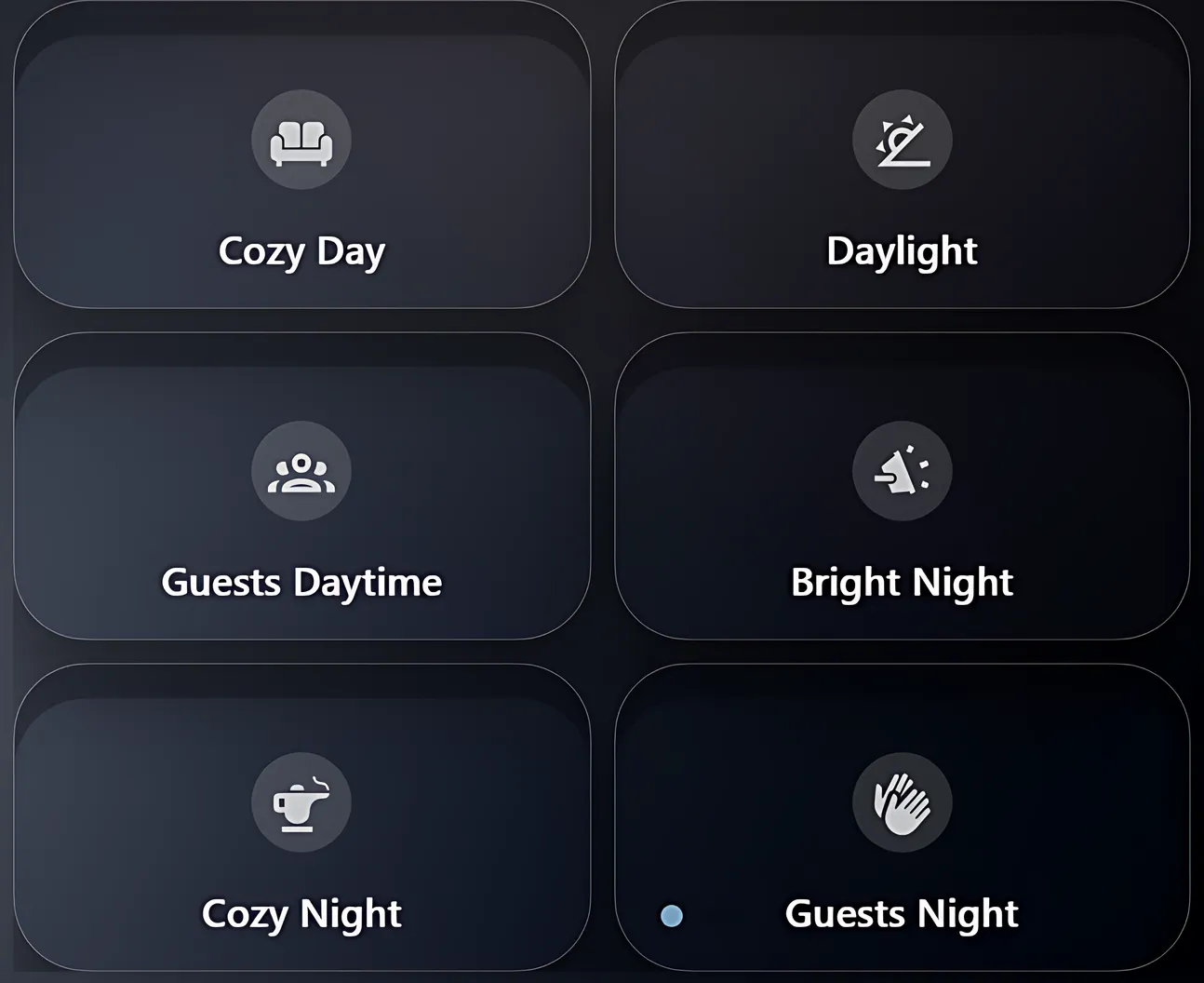

Scenes Named scenes for every moment of the day.
Water Roof tank fills itself; pumps never restart on their own after load-shedding.
Rooms Every room, every floor, one system.
Visit
Book a studio visit
Visits are by invitation and take about 45 minutes. Bring your architect, builder or floor plan, and we'll show you how it would work in your home.
